Frame:
Teammachine R 01 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Teammachine R 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Stem:
BMC ICS2 | Integrated Cockpit System Technology
Handlebar:
BMC HB D4 03, 0, 6 | Alloy 6061 | Race Geometry | 135mm drop, 70mm reach, 6° flare
Grips:
BMC Tacky 3mm
Seatpost:
Teammachine R 01 | 01 Premium Carbon Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Saddle:
Selle Italia SLR Advan | Tubular Steel Rails | 145mm
Crankset:
SHIMANO 105 (FC-R7100)
Chainrings:
52-36T
Cassette:
SHIMANO (CS-HG710)
Cassette Size:
11-36T
Chain:
SHIMANO CN-M6100
Front Derailleur:
SHIMANO 105 Di2 (FD-R7150)
Rear Derailleur:
SHIMANO 105 Di2 (RD-R7150)
Shifters:
SHIMANO 105 Di2 (ST-R7170)
Gears:
2 x 12
Bottom Bracket:
SHIMANO Press-Fit Bottom Bracket (BB-RS500-PB)
Brake Levers / Calipers:
SHIMANO 105 (BR-R7170)
Rotors:
SHIMANO 105 (RT-CL700)
Rotor Size (F/R):
160 / 160mm
Rims:
CR 50 Carbon | Tubeless Ready | 50mm
Hubs (F/R):
TXC-812 & TXC-240A Center Lock
Tires:
Pirelli P Zero Race TLR | Tubeless | 28mm
Tubeless Information:
Tubeless Rim | Tubeless Tires
In the Box:
Aerocore Bottle Cages | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers
Tire Clearance:
30mm measured tire
Weight without Pedals:

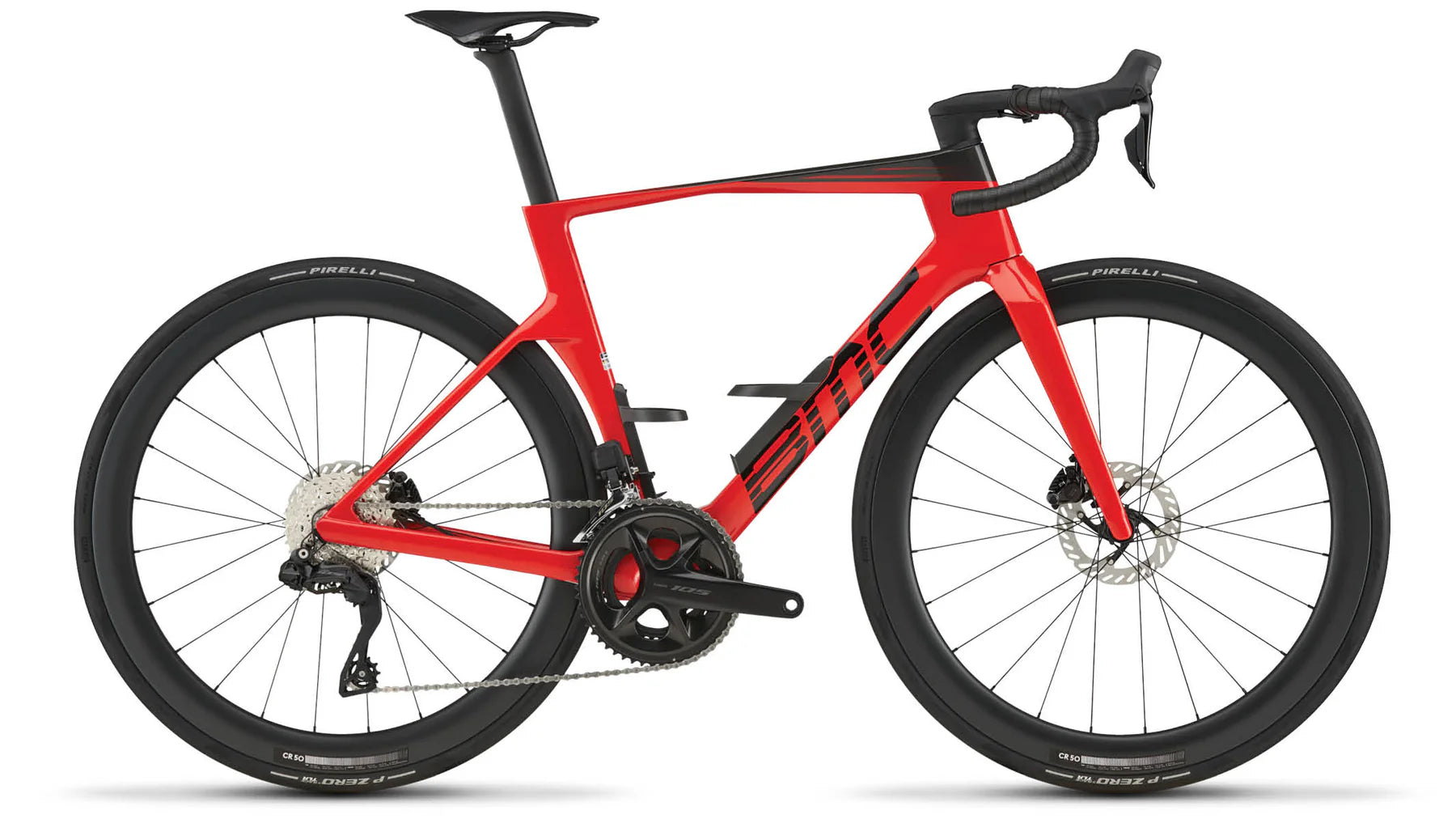

8.0kg | Size 54 as pictured with all accessories
ASTM Classification:
Level 1
